Diy Patio Misting System
Setting up a diy patio misting system is a simple process that can greatly improve your outdoor comfort in hot weather. One thing to note is that you must check the specifications used during installation. The following is a demonstration of the Pocket Panda size for you. Of course, you can also reassemble the size. After installation, you can create a cool and refreshing environment on the terrace, which is very suitable for relaxation and entertainment. Or enjoy the outdoors. Enjoy the benefits of your new misting systems and stay cool all summer long!
Great Deals on What You Love
More variety at your DIY
Install valves or timers to create multiple misting areas. This way, you can control which areas of the patio are misted at any given time.
Combine the misting system with outdoor fans to enhance the cooling effect.
DIY Kits for Different Patio Sizes:
Prepare DIY kits suitable for small, medium, and large patios.
Utilize water recycling systems to minimize water waste.

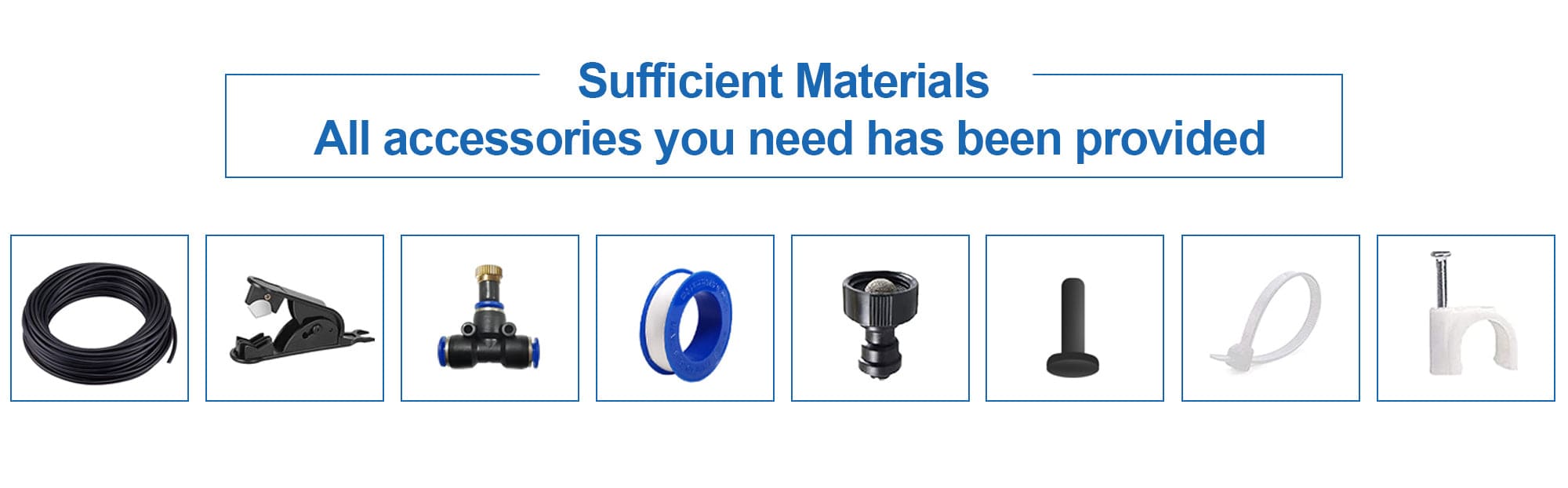

Sufficient Materials
All accessories you need have been provided

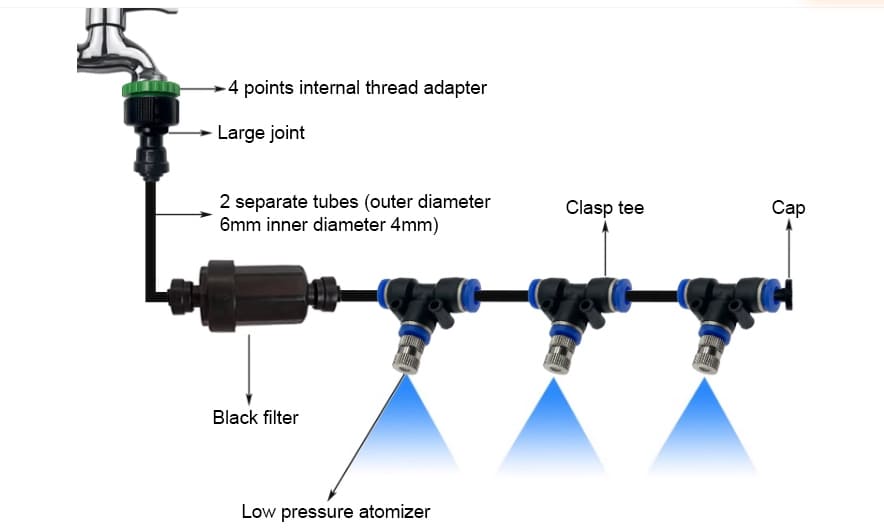

Quick installation diagram
Under different water pressure conditions, the nozzle effect and spray size are different.
diy misting system
- First, you need to identify the patio area you want to cool. Measure the dimensions and sketch a layout, noting where you will place the misting nozzles. Decide whether to install the misting system along the edges of the roof, pergola, or fence based on your home's size and local high-temperature conditions.

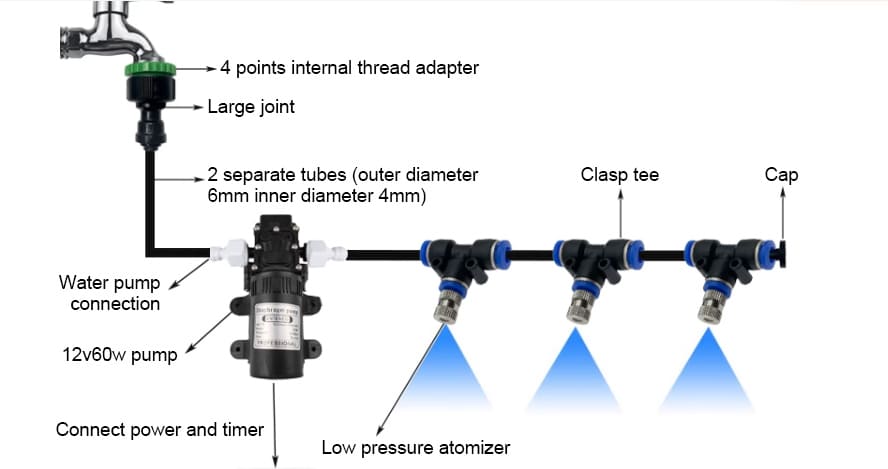

- Next, take out your purchased misting kit. There are two types of installations: one with a booster pump for enhanced pressure and another without a booster for standard home use. Whether you need a booster pump depends on your local high-temperature conditions. If you want better cooling performance, consider opting for a booster pump..

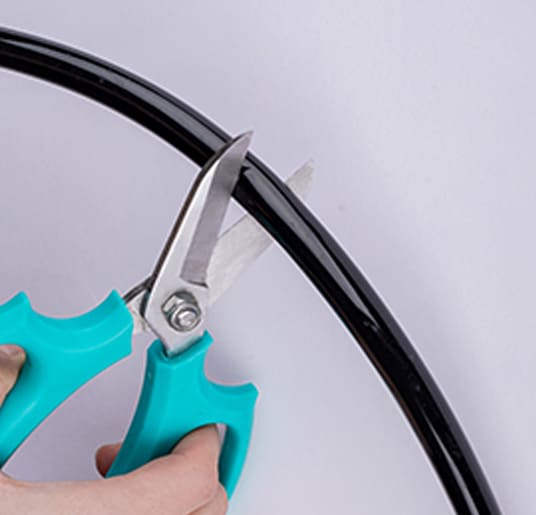

- Using a tubing cutter, cut the tubing to the required lengths according to your layout plan. Make clean, straight cuts to ensure secure connections.
- Lay out the main tubing along the planned path, ensuring it reaches all the areas you want to cool. Use mounting hardware to secure the tubing in place. Clips and brackets can be used to attach the tubing to structures, while zip ties can secure it to fences or other supports.
- Punch small holes in the tubing at the locations where you want to install the misting nozzles. Insert the misting nozzles into the holes, ensuring they are firmly in place. Some kits may have nozzles that screw in or snap into place. Ensure the nozzles are evenly distributed for optimal mist coverage.
- Use T-connectors, elbows, and straight connectors to join different sections of tubing as needed. Ensure all connections are tight to prevent leaks
- Attach the hose adapter to your water source (garden hose or outdoor faucet). If using a hose splitter, connect it to the faucet, then attach the hose adapter to one of the splitter outlets. Install a water filter and pressure regulator between the water source and the misting system if desired, to ensure clean water and consistent pressure.
- Check All Connections: Ensure all components are installed correctly and there are no leaks. Regularly check the system, clean nozzles to prevent clogging..
Cooling the Heat, decrease about 50℉ in temperature
The misting system produce water mist, which absorb the heat from the outdoor surrounding in hot summer, and provides a cooling outdoor areas, cools the surrounding air temperatures 10℃ to 20℃ or 50℉ to 68℉.
Friendly to Animals & Plants
Using eco-friendly and non-toxic materials in the misting systems,the misting system not only enhances the ambiance of the patio but also creates a harmonious and refreshing space for both plants and animals.

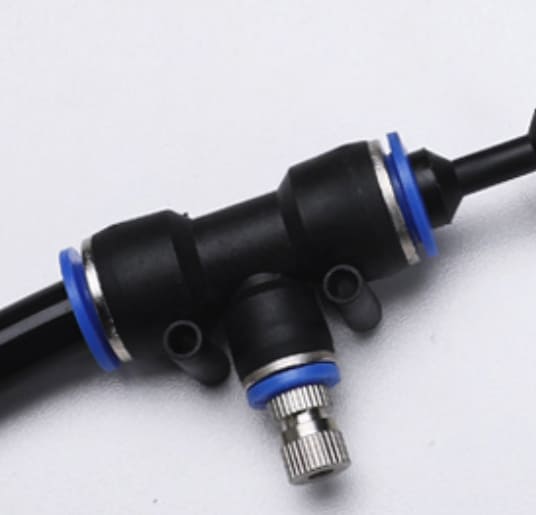

Good sealing
High quality manufacturing technology, the interface joint adopts 12 thickness steel sheet, the connection is firm, does not fall off and does not leak.
Removable Nozzle
Choose our products, can achieve a variety of uses, so that a wide range of applications. You can implement all kinds of ideas
Mist Watering Cover More Area
Watering by misting can cover a more large area than traditional watering, increasing humidity effectively and reducing dust particles.
Stay up-to-date
Blog posts
35FT Double-Loop Water Misting Fan Hose
How Do Misting Cooling System Work
How to Optimize the Function of Patio Misting System
THEME INFO
Misting systems can be worth the investment, especially in hot and dry climates where they provide significant cooling effects. They are effective in reducing outdoor temperatures, making patios and other outdoor areas more comfortable. Additionally, they can add humidity to dry environments, which can be beneficial for both people and plants. However, the value of a misting system also depends on the specific needs and preferences of the user, as well as the climate in which they live.
The amount of water used by misters varies based on the system's size and settings. Generally, misting systems are designed to be water-efficient, producing a fine mist that cools through evaporation with minimal water use.
A misting system is a cooling system that works by dispersing a fine spray of water into the air. This mist, made up of tiny water droplets, evaporates quickly, which absorbs heat from the environment and lowers the temperature. Misting systems are commonly used in outdoor settings like patios, gardens, and commercial outdoor spaces to provide relief from heat. They can be as simple as a basic setup with a hose and nozzles or as complex as a high-pressure system with pumps and automated controls.
